10 Ton Loading Capacity 380V Cable-Powered Rail Transfer Cart with 30m/min Transfer Speed for Industrial Use

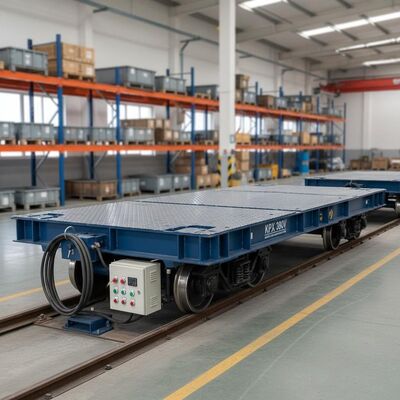

Gambar besar : 10 Ton Loading Capacity 380V Cable-Powered Rail Transfer Cart with 30m/min Transfer Speed for Industrial Use

Detail produk:

Tempat asal:	China-Wuxi Jinqiu Machinery Co.,ltd
Nama merek:	Jinqiu
Sertifikasi:	CE and CQC
Nomor model:	KPX10 dengan bingkai U

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 Set
Harga:	USD or RMB
Kemasan rincian:	rangka baja logam
Waktu pengiriman:	55-60 hari
Syarat-syarat pembayaran:	L/C,T/T
Menyediakan kemampuan:	150 buah per bulan

Kontak

Detil Deskripsi produk

Ukuran meja troli:	6000x1300x550	Kapasitas Pemuatan:	10 Ton
Kecepatan Transfer:	30m/mnt	Kekuatan:	Baterai
Roda:	Roda empat	Penggunaan:	Industri, peralatan, Tugas Berat, Pemindahan barang
Nama Produk:	gerobak transfer listrik datar, troli bertenaga baterai pelat logam industri
Menyoroti:	10 ton motorized transfer trolley , 380V cable-powered rail cart , industrial rail transfer cart 30m/min

Cable Powered Rail Transfer Cart for Continuous Industrial Operation | KPX 380V Heavy Duty Material Handling System

Product Overview

The KPX Cable Powered Rail Transfer Cart is designed for continuous industrial operation environments where battery downtime is not acceptable. It uses a 380V cable-powered system to ensure uninterrupted material handling across production lines.

This model is widely used in steel plants, heavy manufacturing facilities, and continuous production workshops requiring 24/7 logistics operation.

Industrial Challenges

Battery charging downtime limitations
Need for continuous 24/7 operation
High-frequency material transfer demand
Inefficiency of battery replacement systems
Production interruption due to power constraints

Solution Features

380V industrial cable power supply system
Automatic cable reel system
Continuous operation capability
Heavy-duty motor reducer system
Rail-guided stable transport
Emergency stop and overload protection

Technical Specifications

Item	Parameter
Model	KPX Cable Type
Load Capacity	5-100 Ton
Power Supply	380V AC cable system
Operation Mode	Continuous duty cycle
Motor Type	Industrial heavy-duty motor
Control System	Pendant + optional remote
Cable System	Automatic cable reel
Rail Type	Industrial steel rail
Speed	20-30 m/min
Safety System	Alarm + emergency stop + overload protection

Applications

Continuous production lines
Steel manufacturing plants
Heavy machinery workshops
Assembly line logistics
Industrial warehouse systems

Operation Principle

380V power supply → cable reel system feeds energy → motor drives reducer → wheel sets move on rail → operator controls movement → system runs continuously without battery interruption.

Selection Criteria

This model is suitable when:

Continuous operation is required
Battery downtime is not acceptable
High-frequency logistics is needed
Factory supports cable infrastructure

Frequently Asked Questions

Q1: Can it run 24/7 continuously?

Yes, it is designed for continuous operation.

Q2: Is cable system reliable?

Yes, industrial-grade cable reel system is used.

Q3: Does it require batteries?

No, it runs on 380V direct power supply.

Q4: Is maintenance complicated?

No, standard electrical maintenance is sufficient.

Q5: Is travel distance limited?

Yes, it is limited by cable length but customizable.
